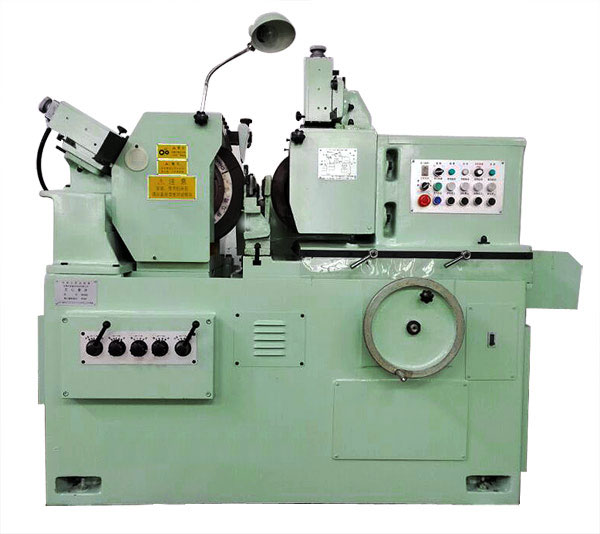

M1050A Centerless Grinding Machine

This machine is suitable for the centerless grinding of cylindrical parts and annular parts and it is suitable for mass production. And it adds pitching-in structure, it can used in the centerless plunge-cut grinding of cone parts and shaped rotational parts, of which tapers are lass than 1:20.


Machine structure characters and performance

1.The overall arrangement of the machine adopts the method of the wheel frame’s single movement

2.The grinding wheel spindle adopts the overhanging structure, and it’s convenient to exchange the abrasion wheel;

3.The grinding wheel spindle adopts multi-piece dynamic pressure bearing;

4.The guide wheel spindle adopts the overhanging structure, and it’s convenient to exchange the guide wheel;

5.The guide wheel spindle uses internal-type sliding bearing;

6.The guide wheel adopts AC frequency conversion infinitely adjustable-speed

7.An optional pitching-in structure can be chosen to strengthen its performance.

Specification Parameter

Grinding Parts Diameter
Continuous grinding 5~50mm
Plunge Feed(Special Orders) 7~50mm
Maximum Grinding Length(Standard Frame) 120mm
Abrasion Wheel Specification P400×150×203mm
Guide Wheel Specification PSA300×150×127mm
Abrasion Wheel Rotate Speed 1668r/min
Guide Wheel Rotate Speed (Infinite)
20~200r/min
Guide Wheel Rotation Angel
In Vertical Plane -2°~ +5°
In Horizontal Plane -1°~ +3°
Feed Hand wheel Scale 0.002mm
Total Stroke Volume 3.5mm
Quick Stroke Volume 2.0~3.5mm
Slow Stroke Volume 0~1.5mm
Length from Abrasion Wheel and the centre of Grinding Wheel to the underside of Bed 220mm
Machine Gross Power 13.78kW
Machine Size(include lubrication tank and water tank) 1920mm×1681mm×1479mm
Machine Weight 2800kg

Working Accuracy

(standard partsΦ20×90mm,45steel)
Circular Degree: 0.002mm
Diameter of consistency: 0.02mm( Continuous Grinding)
Roughness: Ra0.32μm
