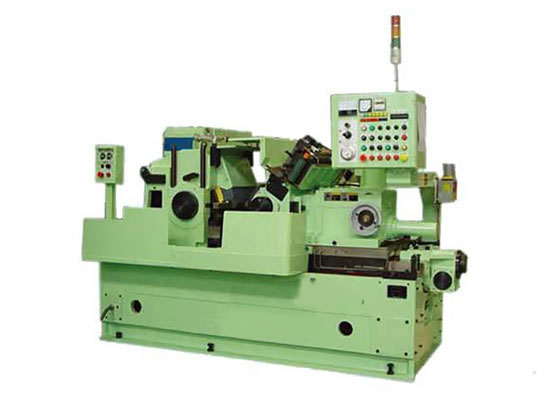

KC6030 Centerless Grinding Machine

Item

KC6030

Grinding Part Diameter(mm)

φ2~φ20

Continuous Grinding(mm)

Standard  Bracket 350

Plunge Feed 300

Abrasion Wheel Size(mm)

P610- 470X305X304.8

Guide Wheel Size(mm)

P330×305×203.2

Abrasion Wheel Rotate Speed(r/min)

1400

Guide Wheel Rotate Speed(r/min)

12~230 AC frequency Conversion Infinitely Adjustable-Speed

Guide Wheel Rotation Angel

In Vertical Plane

-5° ~ 5°

In Horizontal Plane

-2° ~ 2°

Length from Abrasion Wheel and the centre of Grinding Wheel to the underside of Bracket(mm)

235

Length from Abrasion Wheel and the centre of Grinding Wheel to the underside of Bed(mm)

1050

Minimum feed of Abrasion Wheel Dresser(mm)

0.001

Minimum Load(mm)

0.001

Abrasion Wheel Motor Power(kW)

22 4P

Grinding Wheel Motor Power(kW)

2.2 6P

Water Pump Motor Power(kW)

0.4 2P

Magnetic Power Motor Power(kW)

0.18

Torque Capacity of Grinding Wheel Feed Servo Motor(N.m)

10.9

Torque Capacity of Abrasion Wheel Dresser Feed Servo Motor(N.m)

5.2

Torque Capacity of Grinding Wheel Dresser Feed Servo Motor(N.m)

7.2

Cooling Water Flux(L/min)
Machine Power Supply

3N ~50Hz,380V

Machine Weight(t)

8

Machine Size (L×W)


Two structures can be used in abrasion wheel dresser, one is to dress by a single side, the another one is to dress by dish diamond wheel.
