The laser measuring device adopted by our company is manufactured by Beta LaserMike Co., Ltd., and has the following main
	Measuring outer diameter range Resolution Measuring repeatability Linearity Scanning times Working environment temperature Working environment humidity Life of laser tube	0.1270 - 25.4 mm 0.1μm ±0.2μm ±1.2μm 666 times/second 4一43℃ 90% 50000 hours
Besides the measuring function, the laser measuring device also can realize functions of measured data printing, mathematical statistics, engineering ability Cp ＆#118alue graphic display and so on. If connected with the machine, it can carry out feedback control on the machine through measured data processing to make the workpiece size always be in the tolerance range, thus ensuring product quality.

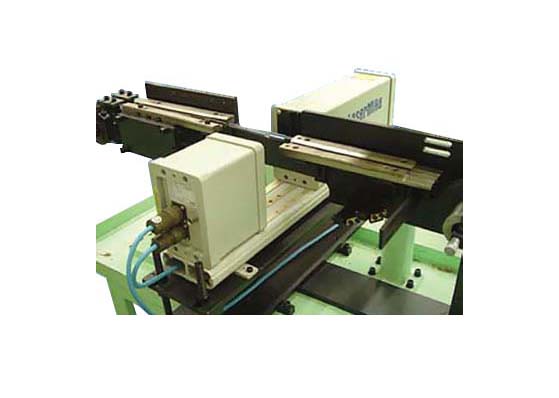

Automatic conveyor belt for parts transport             By configuring the vortex separator, the filtering accuracy of grinding liquid is improved, thus further improving the quality of machined parts. Loading and unloading mechanism for KC-400
