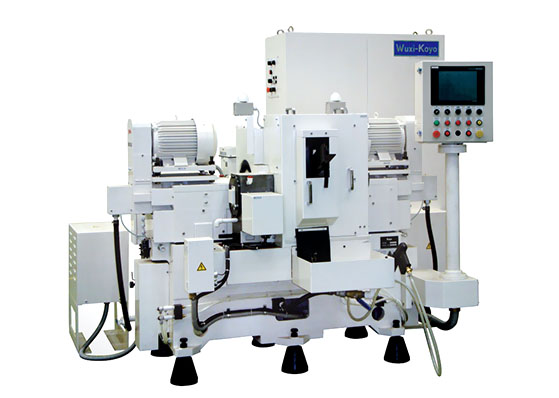

HD3C Horizontal Double-end Surface Grinder

Main Parameters

Model
HD3C
Form
rotary loading disc form
Items
Machining range
Machinable diameter (outer diameter)
φ6-φ50mm
Machinable width
1-60mm
Grinding wheel
Dimensions (outer diameter*width)
φ355(φ305)×50mm
Rotary speed
1740rpm
Motor
for grinding wheel spindle
5.5kw
Loading disc
Rotary speed
1-4rpm
Size
400mm(P.C.D)
Standard size
Width
2360mm
Depth
2000mm
Height
about 1855mm
Weight
about 3000kg
Power voltage
380VAC (50Hz) three-phase
Control voltage
110VAC 24VDC
Standard Accessories
● Motor and electric control box (with galvanometer)
●Grinding wheel stand tilt reading device
● Grinding wheel (its specifications are determined additionally.)
●Machined object feeding device (pass-type grinding form)
● Loading disc driving device (rotary loading disc)
● Horizontal adjusting foot pad and bolt
● Work tools (such as Allen wrench)
Special Accessories
● Grinding wheel micromotion compensating device (button) (minimum unit)
● Dressing device
● Diamond for dressing
● Automatic loading and unloading device
● Automatic machined object supply device
● Loading channel
● Loading disc (rotary)
●Guide plate (pass-type grinding form)
●Cooling liquid supply and purification device
● Automatic lubrication device
● Automatic detection device


Features of HD3C
 CNC control system
Precision high rigidity
●As at the wheel axle center to configure highly rigid rectangular guides
●At the same time achieve a "prevent heat distortion, high accuracy, re-grinding" high rigidity bed
Simple, practical operational
●By CNC control: make everything working conditions and compensation have achieved positive and negative conversational shortcuts
●Automatic trimming device uses a high-performance wheel (CBN, diamond grinding wheel, etc.) dressing
Labor-saving, energy-saving. Saves space
●Corresponding to all the various workpiece feeding device, automatic feeding devices and other rich choice group
●According to FA, FMS structure of mechatronic design philosophy miniaturization

Touch-screen operation panel

CNC CRT
