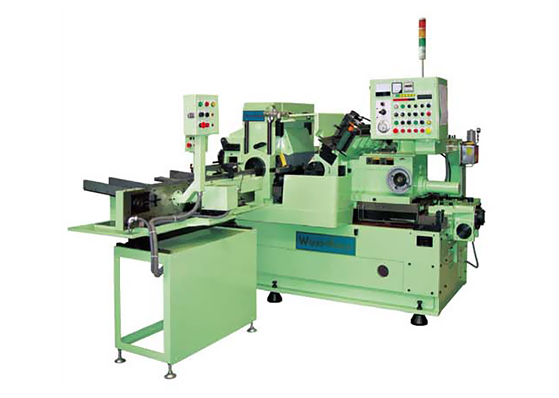

KC-400 Rack Shaft Centerless Grinder

Main Parameters
Processing Range
φ3.0-φ150mm
Max Length of Cut-in Mill400mm
Motor
For Grinding Wheel 37-45kW 4P
For Guiding Wheel 4kW 6P
For Cooling 0.75kW 2P
Spindle Unit
Spindle Roller Bearing Double Support Type Grinding Wheel
Spindle Roller Bearing Double Support Type Guiding Wheel
Specification of Grinding Wheel
610×405×304.8mm(Outer Diameter×Width×Bore Diameter)
Specification of Guiding Wheel
330×405×203.2mm(Outer Diameter×Width×Bore Diameter)
Rotational Speed
Grinding Wheel1040rpm(MAX.1400rpm)
Linear Speed33m/s(MAX.45m/s)
Stepless Variable-frequency Speed Regulation of Guide Wheel12-200rpm
Electric Control Device
FANUC Numerical Control System
Power Supply Voltage
AC380V, Frequency 50Hz
Control Voltage
AC100V/110V;DC24V
Tilting Angle of Guiding Wheel
﹢5°-﹣5°
Floor Area
3050×3100mm(Width×Length)
Machine Tool Weight
About 8.5t


KC400 auto loading device
