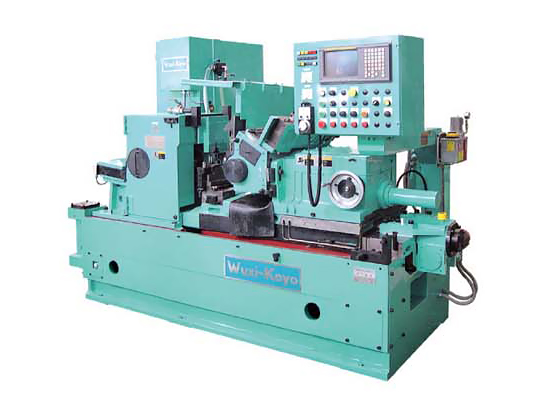

KC-200 Piston Centerless Grinder

Main Parameters
Processing Range
φ1.6-φ120mm
Max Length of Cut-in Mill200mm
Motor
For Grinding Wheel11kW 4P
For Guide Wheel1.5kW 6P
For Cooling0.25kW 2P
Spindle Unit
Spindle Roller Bearing Cantilever Support Type Grinding Wheel
Spindle Roller Bearing Double Support Type Guiding Wheel
Specification of Grinding Wheel
610×205×304.8mm(Outer Diameter×Width×Bore Diameter)
Specification of Guide Wheel
330×205×203.2mm(Outer Diameter×Width×Bore Diameter)
Rotational Speed
Grinding Wheel 1400rpm(MAX.1875rpm)
Linear Speed 45m/s(MAX.60m/s)
Stepless Variable-frequency Speed Regulation of Guiding Wheel12-230rpm
Electric Control Device
Mitsubishi PLC Products
Power Supply Voltage
AC380V, Frequency 50Hz
Control Voltage
AC100V/110V;DC24V
Tilting Angle of Guide Wheel
﹢5°-﹣5°
Floor Area
3050×2700mm(Width×Length)
Machine Tool Weight
About 7t

High and new product-KC200 centerless grinder
