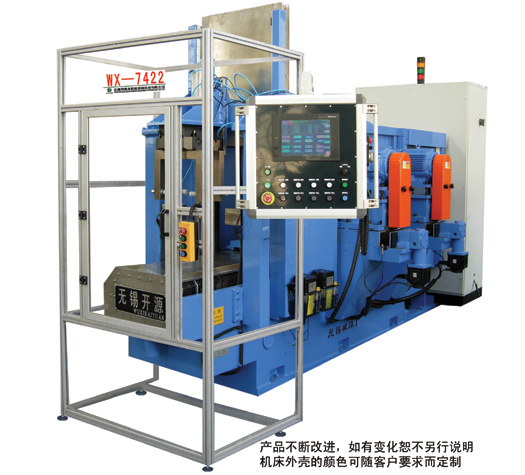

CNC monocrystalline/ polycrystalline silicon surface grinder (4 spindles) WX-7422





Machine Tools Use and Performance:
1. This machine is five-axis double face mill grinding machine, the grinding heads are finished by U1、W1、U2、W2 axis, the reciprocating motion of workbench is finished by X axis.

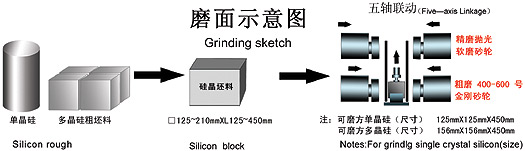

2. This machine is used in the double face grinding of single-crystal or crystal silicon in solar energy industry; it can achieve the goal of rough or accurate grinding in the parts’ faces, this ensures the requirement of double face’parallelism; this machine also can machine the similar parts after altering slightly;
3. This machine has the characteristic of high automaticity and satisfied the requirements of medium duty or mass production. This machine compass the parts by air-operated, it is convenient and stable to clamp the parts, so that to ensure the accuracy of the parts. The control system uses the system of Mitsubishi, it has the characteristic of strong programming function, easy operation, and it can satisfied different machining requirements. At the same time, it equips laser instrument from KEYENCE, it can ensure the different quite high requirements of the parts machining accuracy, so that to satisfied the requirement of volume production.
4. This machine uses the centralization lubrication and central cooling. The abrasion wheel uses the ball screw from Mitsubishi, it has the characteristic of high accuracy of location, to ensure the slight size error between two axis, so that to get the high parallelism.




Technical Specifications:
The length of the parts 125~450mm
